1-PC Ball Valve Hexagon Type,Reduce,2000WOG
FEATURES: Blow-out Proof Stem Pressure Balance Hole in Ball Slot Reduce Port Various Thread Standard Available Forged Stainless Steel Body
- Material
- A105
- Connection Form
- Thread
- Driving Mode
- Manual
- Nominal Pressure
- 2000WOG
- Channel
- Straight Through Type
- Structure
- Floating Ball Valve

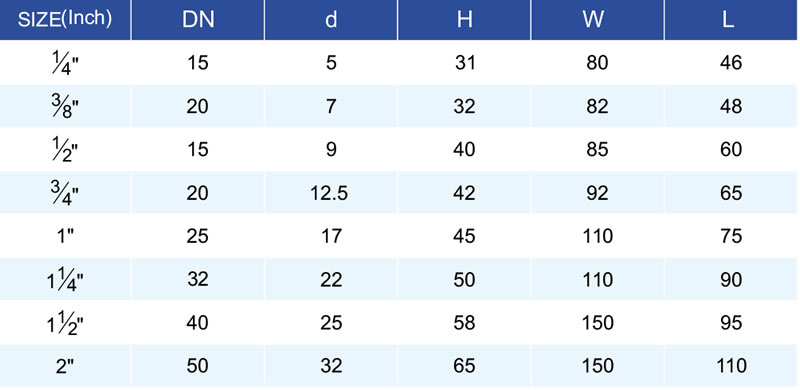

- Size
- 1/4"~2"
FEATURES:
- Blow-out Proof Stem
- Pressure Balance Hole in Ball Slot
- Reduce Port
- Various Thread Standard Available
- Forged Stainless Steel Body

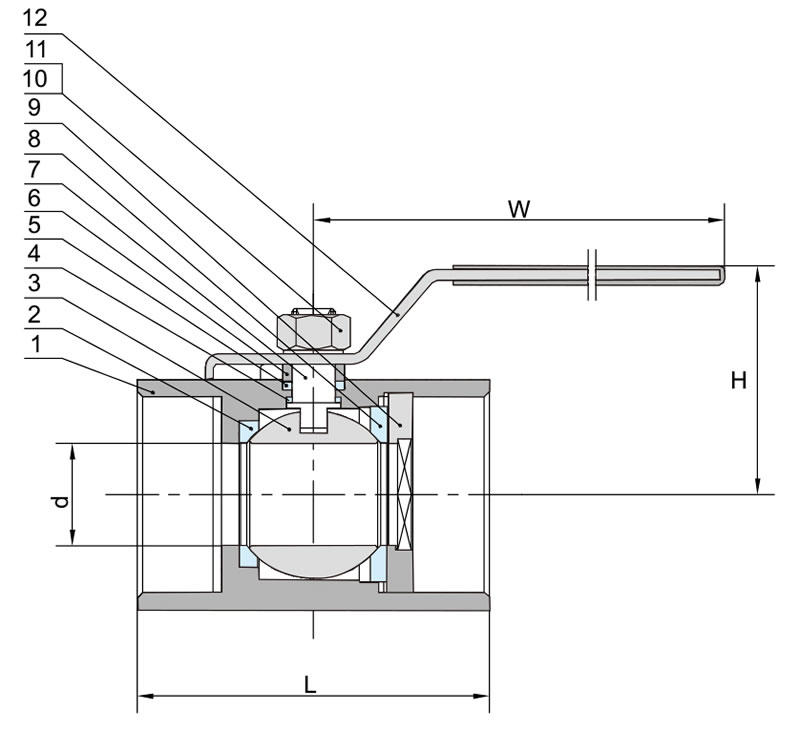

| Body | A105 |
| Seat | PTFE+15%FV |
| Bonnet | SS304/SS316 |
| Ball | SS304/SS316 |
| Stem | SS304/SS316 |
| Stem Gasket | PTFE |
| Packing | PTFE |
| Packing Gland | SS304 |
| Handle | SS304 |
| Thrust Washer | SS304 |
| Nut | ASTM A194 B8 |
