3-PC Stainless Steel Ball Valve Full Port, 1000WOG(PN69) ISO 5211 Mount pad

Model:
WQ-3TL
Material
Stainless Steel
Connection Form
Thread
Driving Mode
Manual
Nominal Pressure
1000WOG
Channel
Straight Through Type
Structure
Floating Ball Valve
Size
1/4"~4"
Contact Now
3-PC Stainless Steel Ball Valve Full Port, 1000WOG(PN69) ISO 5211 Mount pad

FEATURES:

  • Blow-out Proof Stem
  • Investment Casting Body
  • Pressure Balance Hole in Ball Slot
  • Various Thread Standard Available
  • Locking Device Available
  • ISO 5211 Mounting Pad for Easy Automation

size

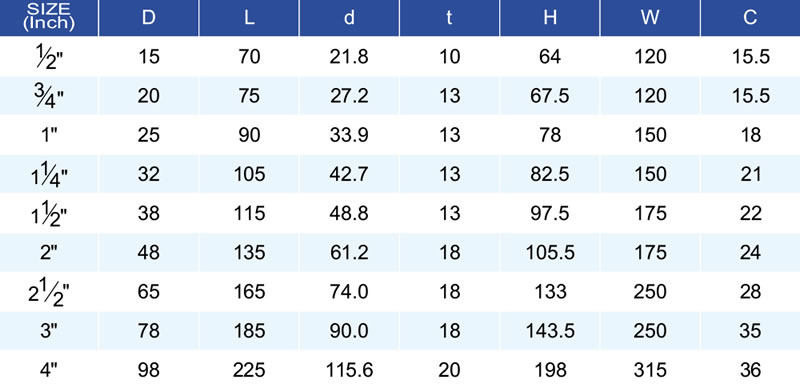

dimension

STANDARD:

  • Design:ASME B16.34
  • Wall Thickness : EN 12516-3,ASME B16.34
  • Pipe Thread : ASME B1.20.1,BS21/2779
  • DIN 2999/259 ISO228-1 JIS B0203 ISO 7/1
  • Socket Weld : ASME B16.11
  • Inspection&Testing :API 598,EN12266
Body CF8/CF8M
Seat PTFE/RPTFE
Ball SS304/SS316
Stem SS316
Stem Gasket PTFE
Packing PTFE
Packing Gland SS304
Handle SS304
Spring Washer ASTM A193-B8
Handle Nut ASTM A194 B8
Handle Lock SS304
Pin PLASTIC
Nut ASTM A194-B8M
End Cap CF8/CF8M
Gasket PTFE
Handle Cover PLASTIC
Stop Pin SS304
Bolt ASTM A193-B8
