3PC Sanitary Ball Valve Clamp End 1000WOG(PN69)

Model:
WQ-SCL(SCH)
Material
Stainless Steel
Connection Form
Clamp
Driving Mode
Manual
Nominal Pressure
1000WOG
Channel
Straight Through Type
Structure
Floating Ball Valve
Size
1/2"~4"
Contact Now
3PC Sanitary Ball Valve Clamp End 1000WOG(PN69)
3PC Sanitary Ball Valve Clamp End 1000WOG(PN69)
3PC Sanitary Ball Valve Clamp End 1000WOG(PN69)

FEATURES:

  • For Food ,Dairy and General Chemical Service Applications
  • Blow-out Proof Stem
  • Cavity Filled Seat Design
  • Pressure Balance Hole In Ball Slot

STANDARD:

  • Design:ASME B16.34 ,MSS SP-110
  • Wall Thickness: ASME B16.34
  • Clamp Ends: ISO 2852 SMS
  • Butt Weld Ends: 3-A Sanitary Standards
  • Inspection & Testing: API598, EN 12266

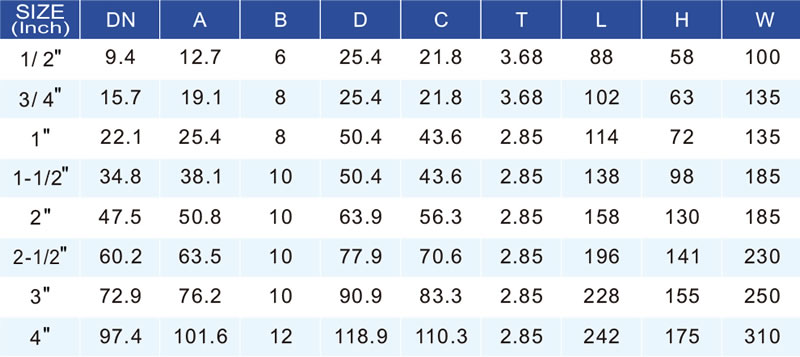

size

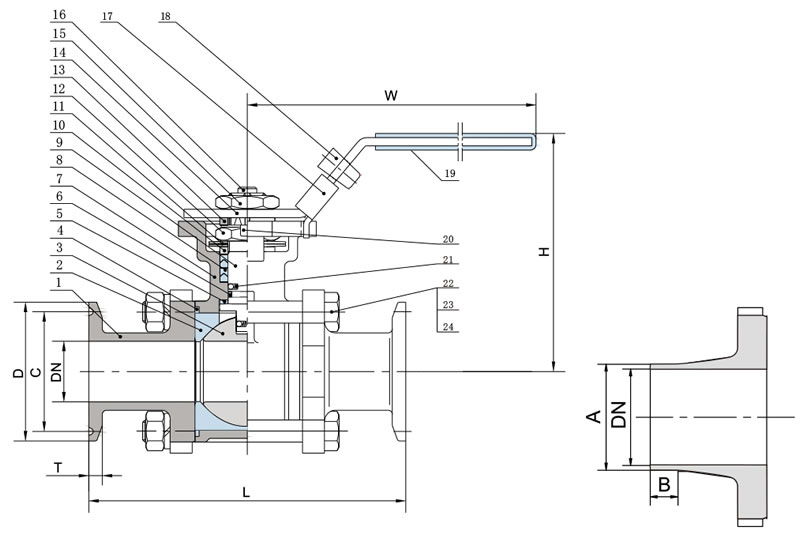

dimension

Body CF8/CF8M
Seat PTFE+15%FV
Ball SS304/SS316
Stem SS304
Stem Gasket PTFE
Packing PTFE
Packing Gland SS304
Handle SS304
Spring Washer SS304
Handle Sleeve PLASTIC
Handle Lock SS304
Pin PLASTIC
Thrust Washer SS304
Nut SS304
End Cap CF8/CF8M
Gasket PTFE
Stop Pin SS304
O-Ring Viton
Butterfly Spring SS304
Stem Nut SS304
Anti-static Device SS304
Bolt SS304
