3-PC Stainless Steel Ball Valve Full Port, 1000WOG(PN69)ISO-Direct Mount Pad

Model:
WQ-3BH
Material
Stainless Steel
Connection Form
Thread
Driving Mode
Manual
Nominal Pressure
1000WOG
Channel
Straight Through Type
Structure
Floating Ball Valve
Size
1/4"~4"
Contact Now
3-PC Stainless Steel Ball Valve Full Port, 1000WOG(PN69)ISO-Direct Mount Pad
3-PC Stainless Steel Ball Valve Full Port, 1000WOG(PN69)ISO-Direct Mount Pad
3-PC Stainless Steel Ball Valve Full Port, 1000WOG(PN69)ISO-Direct Mount Pad

FEATURES:

  • Blow-out Proof Stem
  • Investment Casting Body
  • Pressure Balance Hole in Ball Slot
  • ISO 5211 Direct Mounting Pad for Easy Automation
  • Various Thread Standard Available
  • Locking Device Available

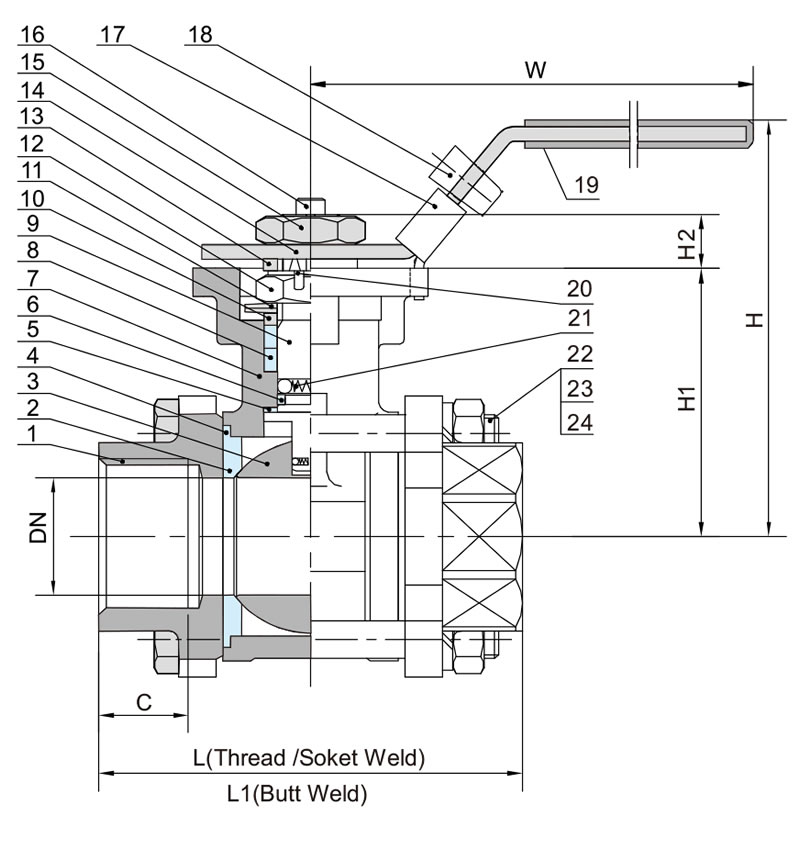

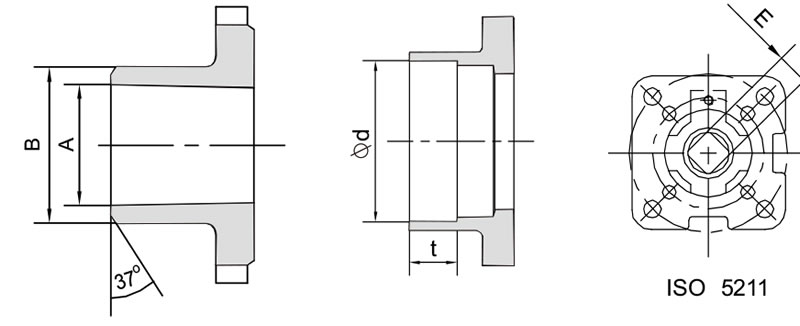

dimension

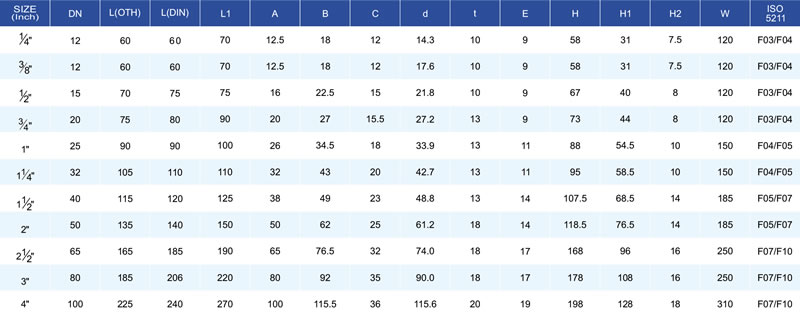

dimension

STANDARD:

  • Design:ASME B16.34
  • Wall Thickness :EN12516-1,ASME B16.34
  • Pipe Thread :ASME B 1.20.1,BS 21/2779 ,DIN 259/2999,ISO 228-1 ,JIS B0203 ISO 7/1
  • Socter Weld :ASME B16.11
  • Inspection&Testing :API 598,EN 12266
Body CF8/CF8M
Seat PTFE+15%FV
Ball SS304/SS316
Stem SS304
Stem Gasket PTFE
Packing PTFE
Handle SS304
Spring Washer SS304
Handle Sleeve PLASTIC
Handle Lock SS304
Pin PLASTIC
Thrust Washer SS304
Nut SS304
End Cap CF8/CF8M
Gasket PTFE
Stop Pin SS304
O-Ring Viton
Butterfly Spring SS304
Anti-static Device SS304
Bolt SS304
