2-PC Stainless Steel Ball Valve Full Port 1000WOG(PN69) ISO-Direct Mount Pad
FEATURES: Blow-out Proof Stem Investment Casting Body Pressure Balance Hole in Ball Slot Various Thread Standard Available Locking Device Available Anti-static Device For Ball-Stem-Body S
- Material
- Stainless Steel
- Connection Form
- Thread
- Driving Mode
- Manual
- Nominal Pressure
- 1000WOG
- Channel
- Straight Through Type
- Structure
- Floating Ball Valve
- Size
- 1/4"~4"
FEATURES:
- Blow-out Proof Stem
- Investment Casting Body
- Pressure Balance Hole in Ball Slot
- Various Thread Standard Available
- Locking Device Available
- Anti-static Device For Ball-Stem-Body
STANDARD:
- Design: ASME B16.34
- Wall Thickness : ASME B16.34,GB12224
- Pipe Thread : ANSI B 1.20.1,BS 21/2779 ,DIN 259/2999,ISO 228-1
- Face to Face: DIN 3202-M3
- Inspection&Testing : API 598

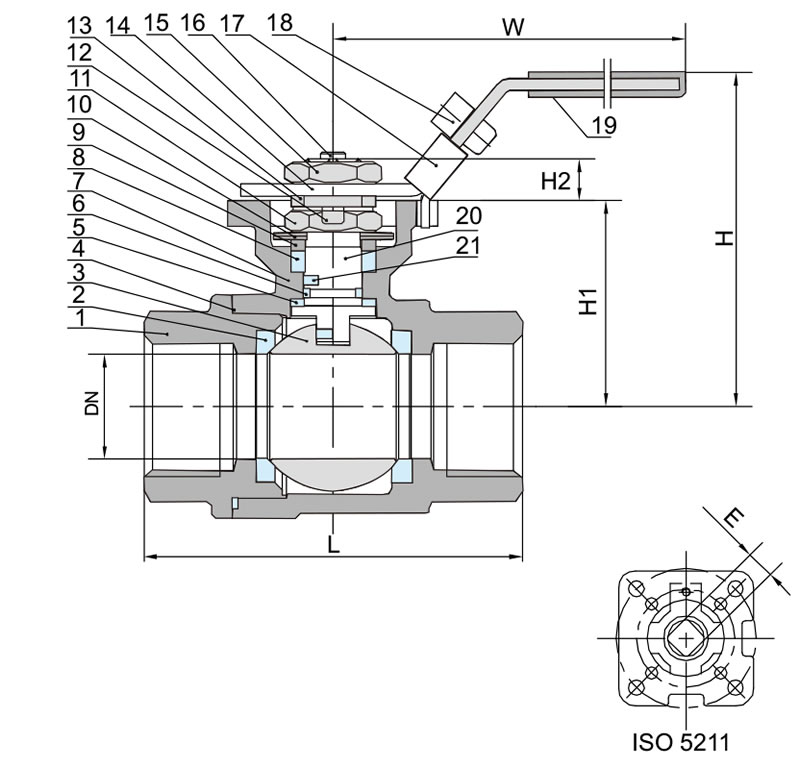

| Body | CF8/CF8M |
| Seat | PTFE+15%FV |
| Ball | SS304/SS316 |
| Stem | SS304/SS316 |
| Stem Gasket | PTFE |
| Packing | PTFE |
| Packing Gland | SS304 |
| Handle | SS304 |
| Handle Sleeve | PLASTIC |
| Handle Lock | SS304 |
| Pin | PLASTIC |
| Thrust Washer | SS304 |
| Nut | SS304 |
| End Cap | CF8/CF8M |
| Gasket | PTFE |
| Stop Pin | SS304 |
| O-Ring | Viton |
| Butterfly Spring | SS304 |
| Stem Nut | SS304 |
| Anti-static Device | SS304 |
