2-PC Stainless Steel Ball Valve Full Port,2000WOG(PN138)

Material
Stainless Steel
Connection Form
Thread
Driving Mode
Manual
Nominal Pressure
2000WOG
Channel
Straight Through Type
Structure
Floating Ball Valve
Size
1/4"~4"
Contact Now
2-PC Stainless Steel Ball Valve Full  Port,2000WOG(PN138)

FEATURES:

  • Blow-out Proof Stem
  • Investment Casting Body
  • Pressure Balance Hole in Ball Slot
  • Various Thread Standard Available
  • Locking Device Available

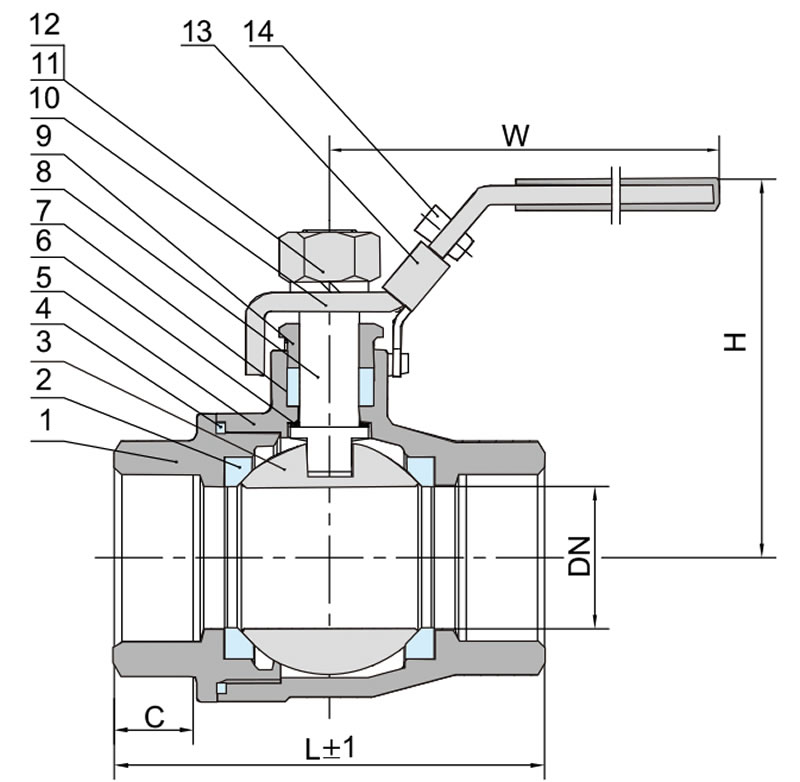

size

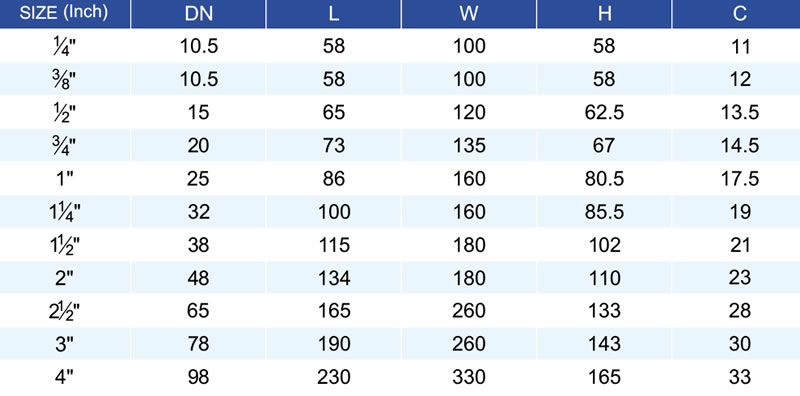

dimension

STANDARD:

  • Design: ASME B16.34
  • Wall Thickness : ASME B16.34,GB12224
  • Pipe Thread : ANSI B 1.20.1,BS 21/2779 ,DIN 259/2999,ISO 228-1
  • Inspection&Testing : API 598
Body CF8/CF8M
Seat RPTFE
Ball SS304/SS316
Stem SS304
Stem Gasket PTFE
Packing PTFE
Packing Gland SS304
Handle SS304
Spring Washer SS304
Handle Nut ASTM A194 B8
Handle Lock SS304
Pin PLASTIC
End Cap CF8/CF8M
Gasket PTFE
