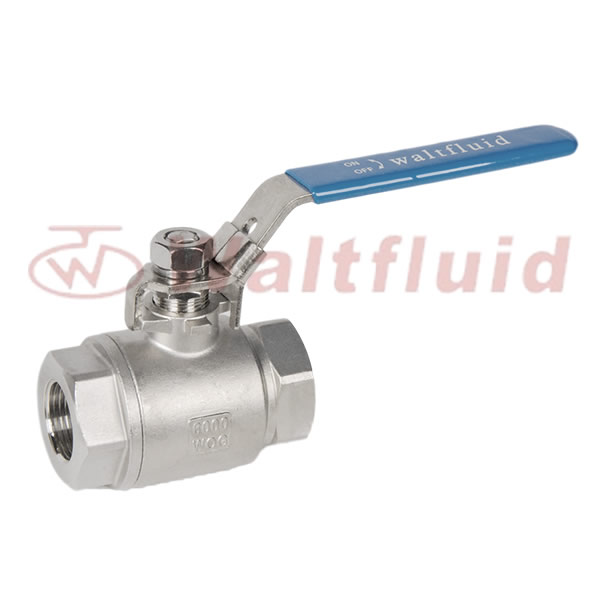

2-PC Stainless Steel Ball Valve Full Port, 6000WOG (PN420)
FEATURES: Blow-out Proof Stem Investment Casting Body Pressure Balance Hole in Ball Slot Full Port Various Thread Standard Available Locking Device Available STANDARD: Design: ASME B16.
- Material
- Stainless Steel
- Connection Form
- Thread
- Driving Mode
- Manual
- Nominal Pressure
- 6000WOG
- Channel
- Straight Through Type
- Structure
- Floating Ball Valve

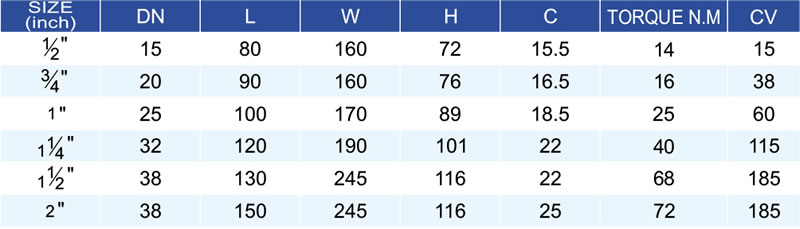

- Size
- 1/2"~2"
FEATURES:
- Blow-out Proof Stem
- Investment Casting Body
- Pressure Balance Hole in Ball Slot
- Full Port
- Various Thread Standard Available
- Locking Device Available
STANDARD:
- Design: ASME B16.34
- Wall Thickness : ASME B16.34,GB12224
- Pipe Thread : ANSI B 1.20.1,BS 21/2779 DIN 259/2999,ISO 228-1
- Inspection&Testing : API 598

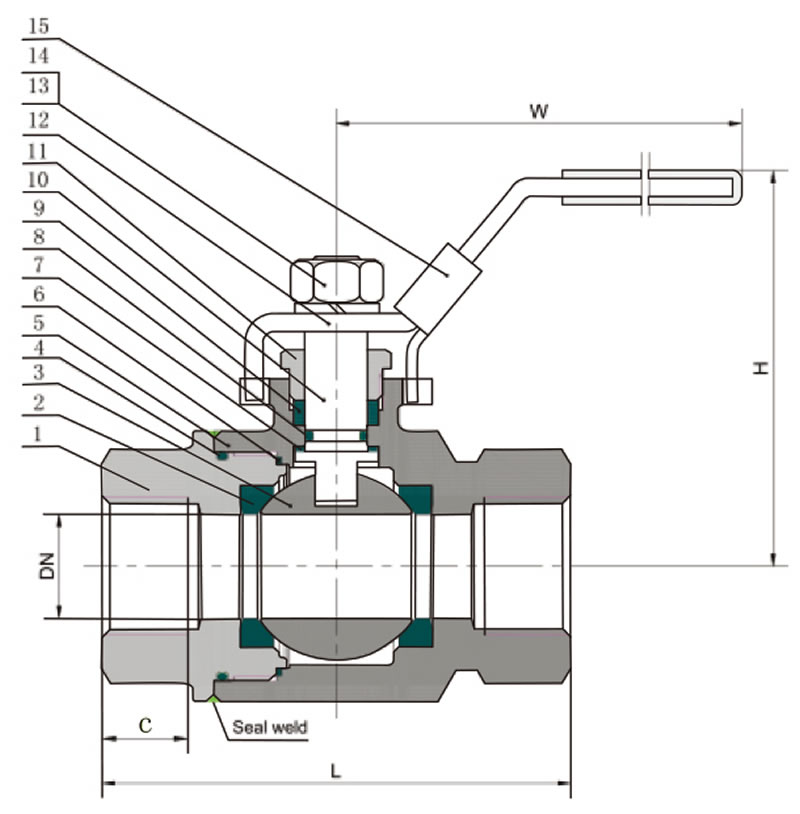

| Body | CF8/CF8M |
| Seat | Delrin/PEEK |
| Ball | F304/F316 |
| Stem | F304/F316 |
| Stem Gasket | PTFE |
| Packing | PTFE |
| Packing Gland | SS304 |
| Handle | SS304 |
| Spring Washer | SS304 |
| Handle Nut | SS304 |
| Handle Lock | SS304 |
| End Cap | CF8/CF8M |
| Gasket | PTFE |
| O-Ring | VITON |
Related Products

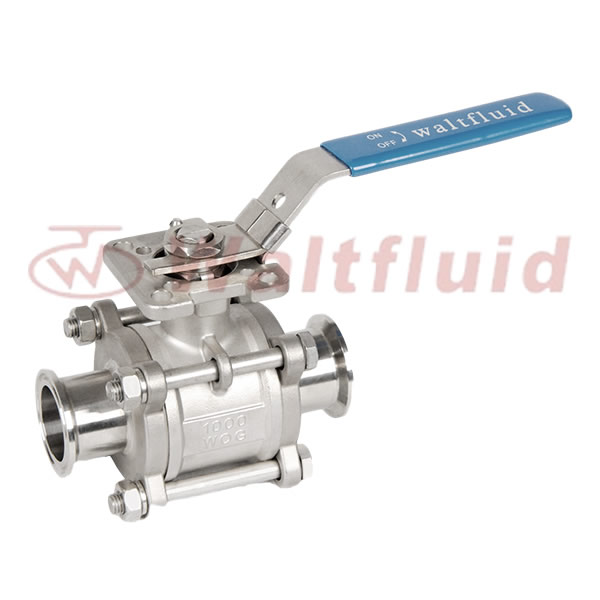

3PC Sanitary Ball Valve Clamp End 1000WOG(PN69)
FEATURES: For Food ,Dairy and General Chemical Service Applications Blow-out Proof Stem Cavity Filled Seat Design Pressu...

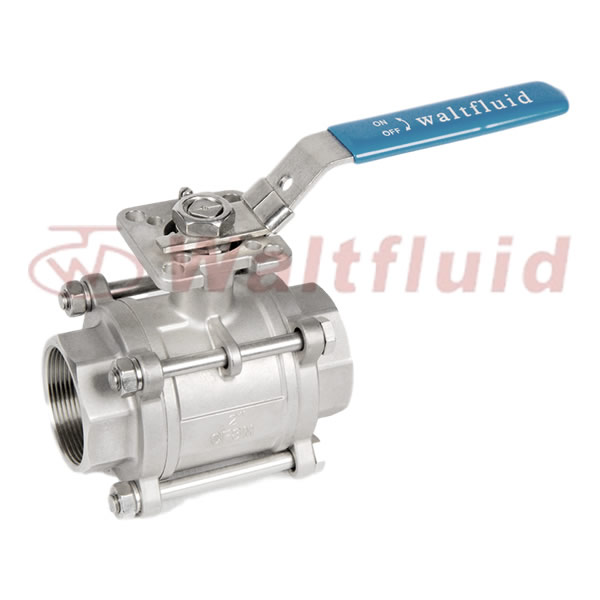

3-PC Stainless Steel Ball Valve Full Port, 1000WOG(PN69)ISO-Direct Mount Pad
FEATURES: Blow-out Proof Stem Investment Casting Body Pressure Balance Hole in Ball Slot ISO 5211 Direct Mounting Pad fo...
3-PC Stainless Steel Ball Valve Full Port, 1000WOG(PN69) ISO 5211 Mount pad
FEATURES: Blow-out Proof Stem Investment Casting Body Pressure Balance Hole in Ball Slot Various Thread Standard Availab...

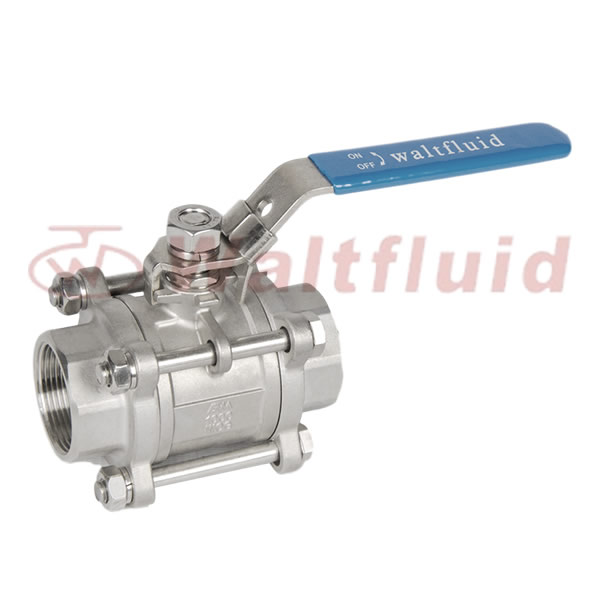

3-PC Stainless Steel Ball Valve Full Port, 1000WOG (PN69)
