2-PC Stainless Steel Ball Valve Reduce Port, 2000WOG(PN138)
- Material:
- Stainless Steel
- Connection Form:
- Thread
- Driving Mode:
- Manual
- Nominal Pressure:
- 2000WOG
- Channel:
- Straight Through Type
- Structure:
- Floating Ball Valve
- Size:
- 1/4"~2"
FEATURES:
- Blow-out Proof Stem
- Investment Casting Body
- Pressure Balance Hole in Ball Slot
- Reduce Port
- Various Thread Standard Available
- Locking Device Available
STANDARD:
- Design: ASME B16.34
- Wall Thickness : ASME B16.34,GB12224
- Pipe Thread : ANSI B 1.20.1,BS 21/2779 ,DIN 259/2999,ISO 228-1
- Inspection&Testing : API 598

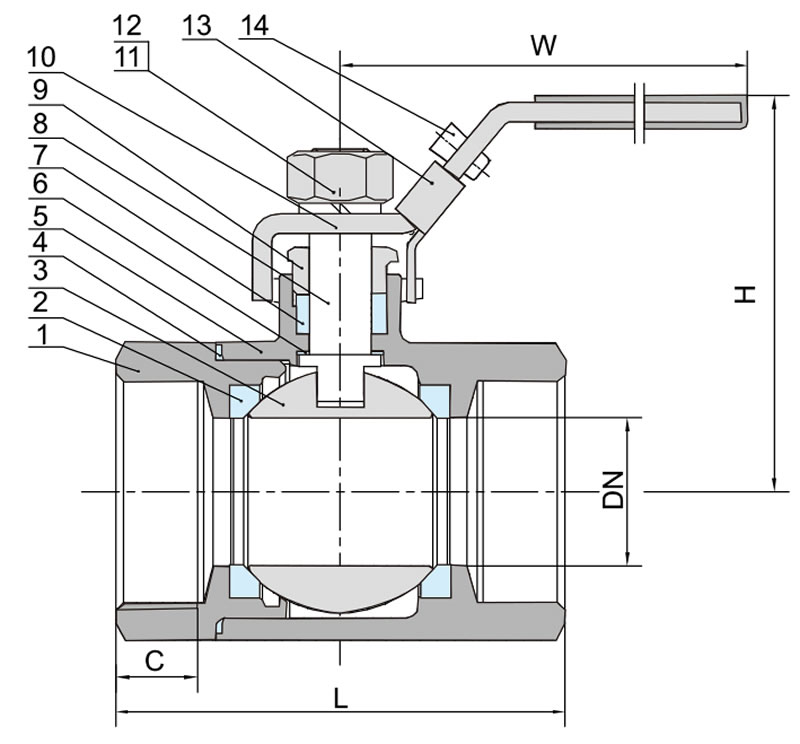

| Body | CF8/CF8M |
| Seat | RPTFE |
| Ball | SS304/SS316 |
| Stem | SS304 |
| Packing | PTFE |
| Packing Gland | SS304 |
| Handle | SS304 |
| Spring Washer | SS304 |
| Handle Nut | ASTM A194 B8 |
| Handle Lock | SS304 |
| Pin | PLASTIC |
| End Cap | CF8/CF8M |
| Gasket | PTFE |
