3-Way Stainless Steel Ball Valve Reduce Port, 1000WOG(PN69)ISO-Direct Mount Pad

Model:
WQ-ATH
Material
Stainless Steel
Connection Form
Thread
Driving Mode
Manual
Nominal Pressure
1000WOG
Channel
T Type & L Type
Structure
Floating Ball Valve
Type
1/4"~3"
Contact Now
3-Way Stainless Steel Ball Valve Reduce Port, 1000WOG(PN69)ISO-Direct Mount Pad

FEATURES:

  • Blow-out Proof Stem
  • Anti-Ataic Device for Ball- Stem-Body
  • Investment Casting Body
  • Pressure Balance Hole in Ball Slot
  • Iso 5211 Direct Mounting Pad for Easy Automation
  • L-Port,T-Port Available

STANDARD:

  • Design: ASME B16.34
  • Wall Thickness: ASME B16.34,GB12224
  • Pipe Thread: ANSIB 1.20.1,BS 21/2779
  • DIN 259/2999,IS0 228-1
  • Inspection&Testing: API 598

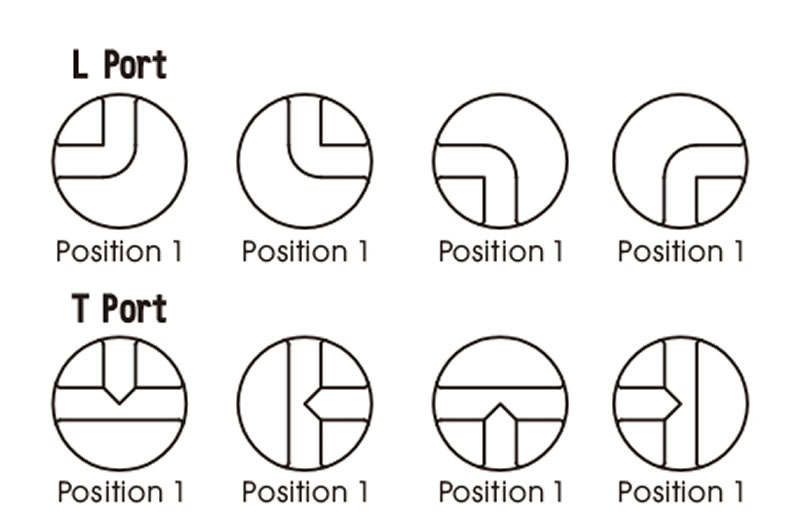

port

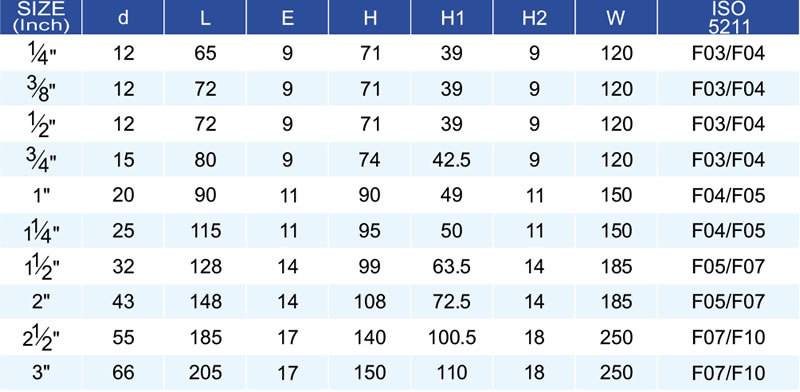

size

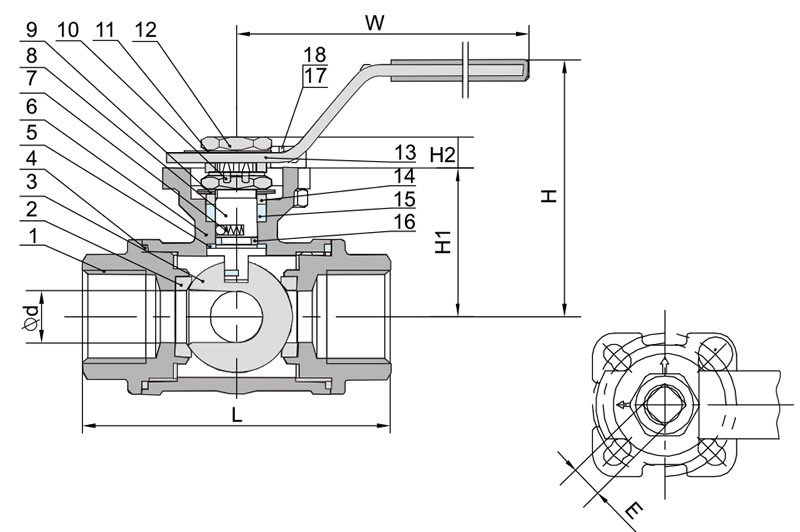

dimension

Body CF8/CF8MCF8M
Seat PTFE+15%FV
Ball SS304/SS316
Stem SS304
Stem Gasket PTFE
Packing PTFE
Packing Gland SS304
Handle SS304
Thrust Washer SS304
Nut SS304
End Cap CF8/CF8M
Gasket PTFE
Stop Pin SS304
O-Ring Viton
Butterfly Spring PH15-7Mo
Anti-static Device SS304
Name Plate SS304
