3-PC Forge Steel Ball Valve Full Port, 6000WOG(PN420)

Model:
WQ-BKH
Material
Forge Steel
Connection Form
Thread
Driving Mode
Manual
Nominal Pressure
6000WOG
Channel
Straight Through Type
Size
1/4"~2"
Contact Now
3-PC Forge Steel Ball Valve Full Port, 6000WOG(PN420)

FEATURES:

  • Blow-out Proof Stem
  • Pressure Balance Hole in Ball Slot
  • Various Thread Standard Available
  • Forge Steel Body
  • Standard Port

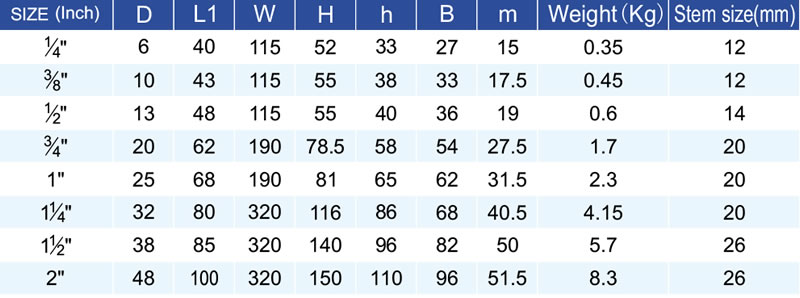

size

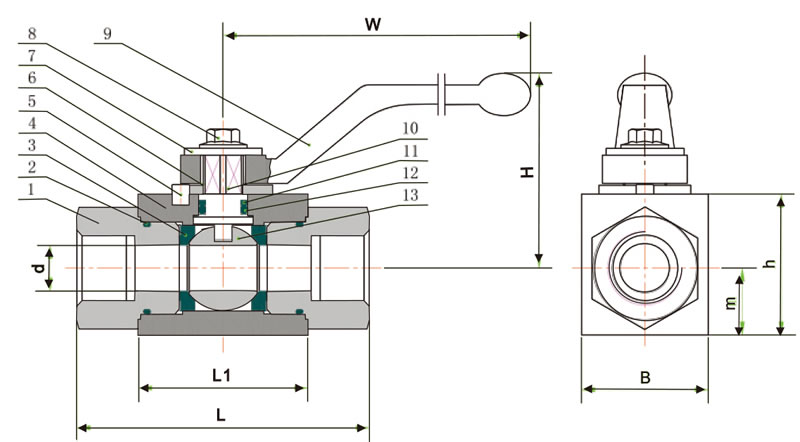

dimension

STANDARD:

  • Design: ASME B16.34
  • Wall Thickness : ASME B16.34,GB12224
  • Pipe Thread : ANSI B 1.20.1,BS 21/2779  DIN 259/2999,ISO 228-1
  • Inspection&Testing : API 598
Body F304/F316
Seat Delrin/PEEK
Metal Gasket SS304
Ball F304/F316
Stem F304/F316
Handle Aiuminium Alloy
Handle Nut SS304
Pin SS304
End Cap F304/F316
O-Ring VITON
Snap Ring SS304
Back-up Ring RPTFE
